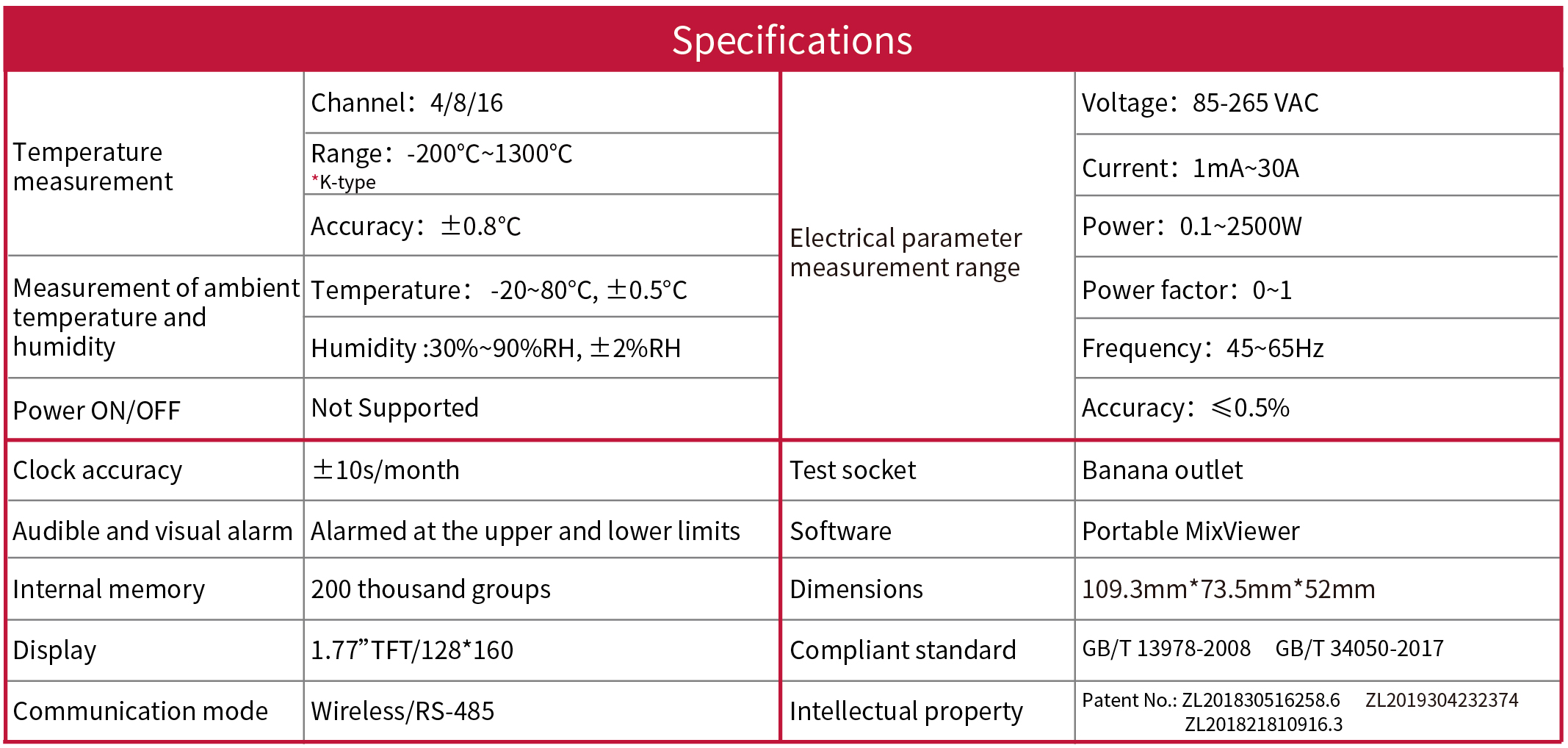

Temperature
-200~1300℃
±0.8℃ -
Power
0.1W~2500W
≤0.5% -
Voltage
85~ 265VAC
≤0.5% -
Current
1mA~30A
-
Ambient T&H
-20~80℃
30~90%RH
| Function | Extended application |
|---|---|
| Temperature measurement |
JS5301A Function extension box of connection between robot
and measurement parameter judgment
|
| Electrical parameter measurement |
JS5302A Wireless barcode scanner
*Supporting one barcode scanner -to-one Power Meter and
one barcode scanner -to-multiple Power Meters
|
| Precision clock |
JS5303A Power ON-OFF function extension box
*Supporting on-off ≥ 10 million times
|
|
Measurement of ambient
temperature and humidity
|
JS5401A Ambient temperature and humidity probe |
| Separation of power supply |
JS5403A Three-phase electrical parameter measurement extension
module
|
Industrial Interent Instrument
