JS5100A Receiving Unit
When setting up personal test network, JS5100A Receiving Unit is used for the communication connection between portable series equipment and host, is responsible for test data upload and status command distribution, and supports single equipment group management.
-

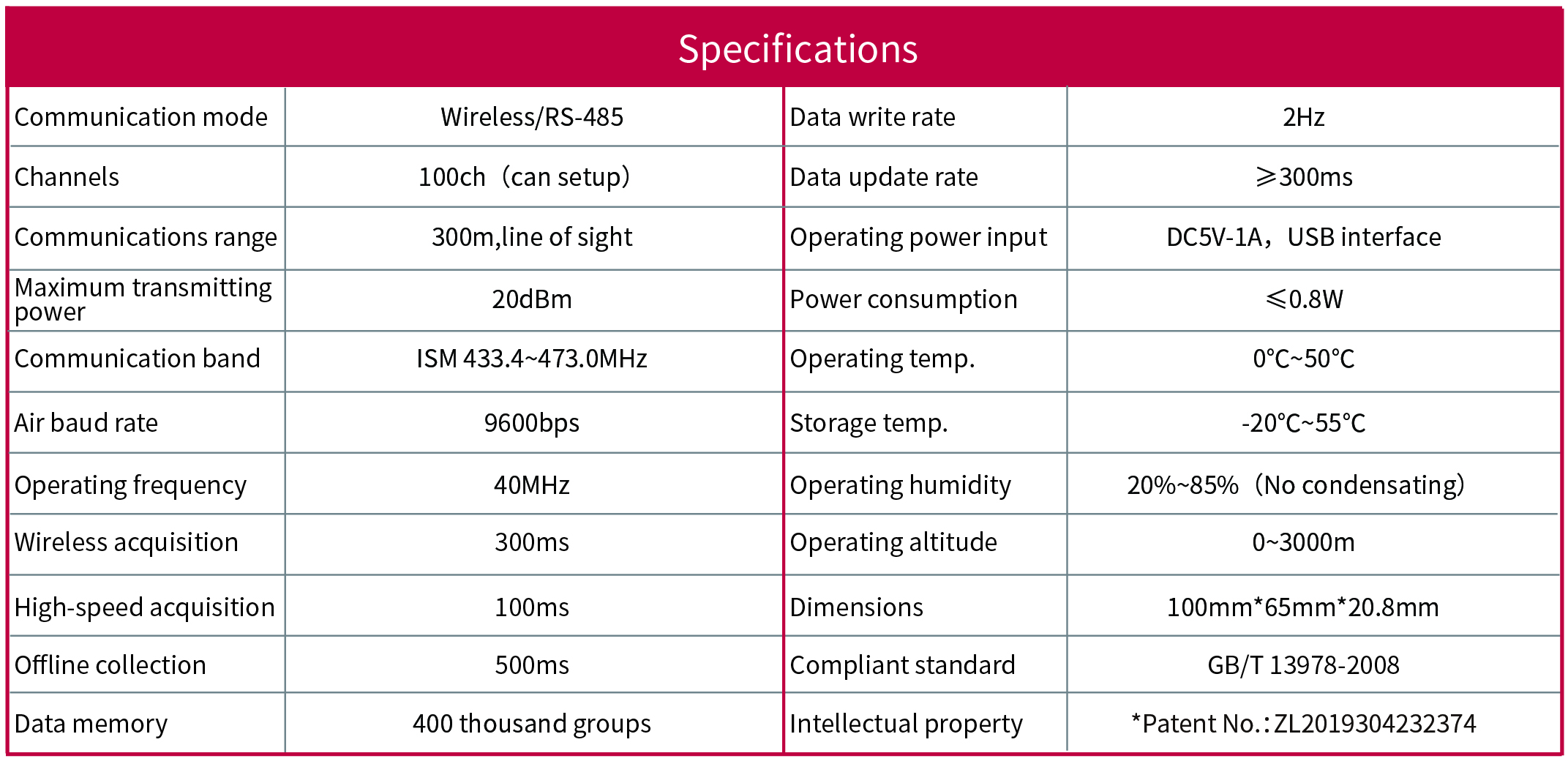

Channels
100ch（can setup）
-
Communications range
300m
-
Communication band
433.4~473.0MHz
-
Data memory
400 thousand groups
-
Data update rate
≥300ms
| Function | Characteristic |
|---|---|
| Telecommunications | High quality shell ——Glass screen |
| Data acquisition | Long communication distance and sensitive reception |
| 400000 standard test data storage | Flexible channel settings |
| Support up to 64 JS5500 series products | High capacity data storage |
| Wireless connection and flexible networking | Quickly build test platform |
